Product name : Monel K500(Ni-Cu alloy)
Item :Nickel Alloy
Price :
Details :
| Products description：Alloy K500 |
| Equivalent designations |
| UNS N05500, Monel K500 |
| DIN W. Nr. 2.4375 |
|
| Form |
ASTM |

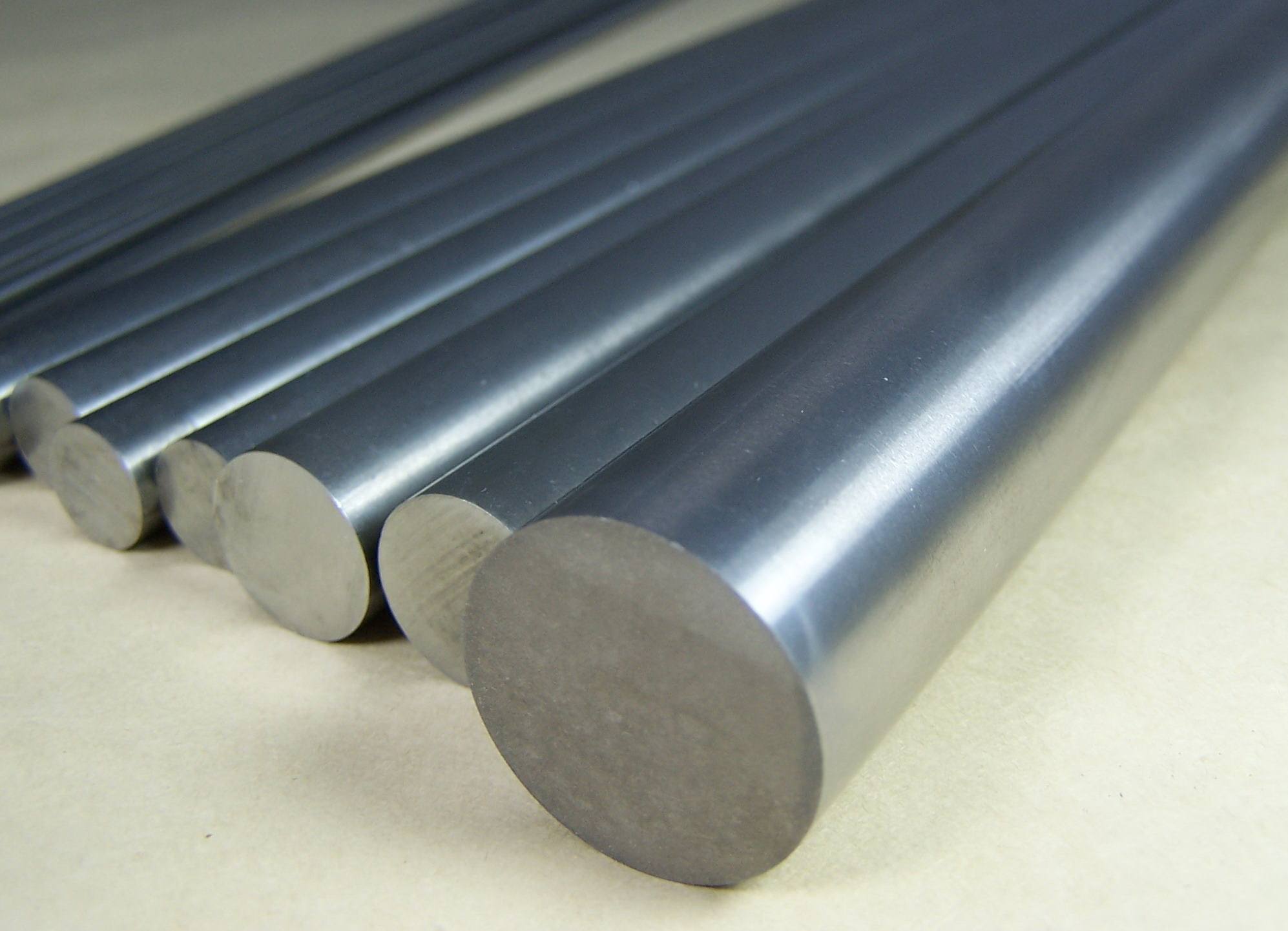

| Rod, bar, wire and forging |
B 865 |
Chemical composition
| % |
Ni |
Cu |
Fe |
C |
Mn |
Si |
S |
Al |
Ti |
| min |
63.0 |
27.0 |
|
|
|
|
|
2.30 |
0.35 |
| max |
|
33.0 |
2.0 |
0.18 |
1.5 |
0.50 |
0.010 |
3.15 |
0.85 |
Physical properties
| Density |
8.44 g/cm3 |
| Melting range |
1315-1350℃ |
Features: Monel K-500 combines Monel 400’s excellent corrosion resistance with greater strength and hardness as a result of adding aluminum and titanium and proper heat treatment to cause precipitation hardening. It is nonmagnetic at temperatures as low as -101℃. Monel K-500 has excellent dimensional stability which is very useful in high precision devices. Like Monel 400, it does not undergo ductile-to-brittle transition at cryogenic temperatures as low as that of liquid hydrogen. Its tensile and yield strengths increase while ductility and toughness are only slightly impaired.
Applications: Chemical process pump and valve components; paper production pulp processing doctor blades and scrapers; marine engineering chains, cables, fasteners and springs; electronic components; and oil and gas production non-magnetic housings, pump shafts and impellers.
Note: Monel is a registered trademark of the Special Metals Corporation group of companies.
|
|
|
