Product Show
Product name : HP Graphite Electrodes
Item :HP GE
Price :

Details :

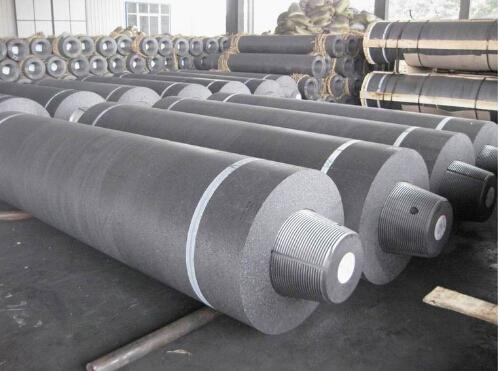

 Graphite Electrode


Specifications

1.Diameter:40 - 600mm or1.6"-24"
2.Length: 250 - 2400mm or10"-96"
3.Grades:  RP, RPI, HP, SHP, UHP(ISO9001:2008standard)
4.Nipples:3TPI,4TPI




Applications

Used in EAF and LF for steel making, as well as in electric smelting furnace for producing industrial silicon, phosphorus, etc.



Programmable properties
1.Good electrical conductivity
2.High resistance to thermal shock
3.High mechanical strength



Grades:  RP, RPI, HP, SHP, UHP

Diameter:40 - 600mm or1.6"-24"
Length: 250 - 2400mm or10"-96"

All graphite electrodes are offered with tapered nipples, i.e. 3 or 4 threads per inch, and meet the internationally accepted tolerances as per NEMA CG 1/ IEC 60239 / JIS R7201 standards.



Specifications





Item Unit High-power Super high-power Ultra high-power
φ200-400 φ450-500 φ350-400 φ450-500 φ300-400 φ450-500
Specific Resistance(≤) E μ Ω·m 7 7.5 6.5 7 6.2 6.5
N 6.5 6.5 6 6 5.5 5.5
Bending Strength (≥)

E
MPa

10.5 9.8 10.5 10 10.5 10
N 15 15 16 16 16 16
Elastic Modulus (≤)

E
GPa

12 12 13 13 14 14
N 16 16 17 17 18 18
Bulk Density (≥)

E
g/cm3

1.6 1.6 1.62 1.62 1.65 1.64
N 1.7 1.7 1.71 1.71 1.72 1.72
C.T.E.(≤)
(100-600°C)

E
10-6/°C

2.4 2.4 2.2 2.2 1.5 1.5
N 2.2 2.2 1.8 1.8 1.4 1.4
Ash(≤)   % 0.3 0.3 0.3 0.3 0.3 0.3

 Note: The consumption of Electric Arc Furnace (EAF) is about 3-5kg per ton steel. The Ladle Furnace (LF) is about 1kg per ton steel. The converter with Ladle Furnace (LF) is about 0.5kg per ton steel. All the information is for your reference. There are many factors can influence the consumption, such as the kinds of steel, conduction time, process production and so on. So if you have any question, please don't hesitate to contact us.

Operating instruction

 1. Use special hoist tools to hoist graphite electrode. It is strictly forbad to prize electrode ends up with crowbar. It must be handled with great care during transport to avoid being struck.

2. Graphite electrode must be kept away from being moistened or wetted by rain, snow and water, and must be kept dry.

3. Carefully checking before making connection, make sure that socket and nipple thread is not damaged, nipple pitch plug is in.

4. Blow the nipple and socket threads with compressed air.

5. It must be dried in the furnace before use, the drying temperature in the furnace should be less than 150℃,the  drying period should be more 30 hours

6. Graphite electrode must be connected and contacted closely and straightly.Use moment spanner for connecting electrode with suitable force. Mustn’t decline.

7. The holding device must hold the electrode tightly, good contact and no arc.

8. To avoid the electrode breakage, put the large materials in lower part and small materials in the upper part. Insulating materials should not be put into the furnace. The working current of electrode must be conformity with the allowable current of electrode in the instructions.
