Product Show

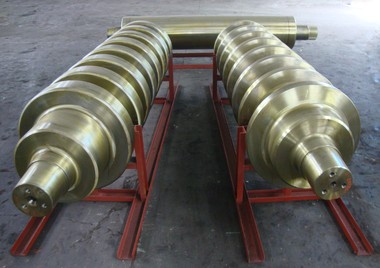

Product name : Forged steel roll
Item :Forged steel roll
Price :

Details :

 Forged steel roll

Properties

Forged steel rolls are treated with dual frequency heating machine and cold treatment equipment. The whole procedure is computer-controlled
so as to provide rolls with a deep hardened layer, high and homogeneous hardness, superior wear ability and sufficient resistance to accident.
We produce forged roll for rolling mills, specialized making kinds of steel forging and casting mill roll and back up roll.


Specification

Roll type
Material Characteristics
Body diameter (mm)
Body length (mm)
Work rolls
 Cr2 Cr3 Cr5 series
(9Cr2Mo, 86CrMoV7, MC3, 8Cr5MoV ect.)
≤800
≤2000
Intermediate rolls
 Cr2 Cr3 Cr5 series
(9Cr2Mo, 86CrMoV7, 70Cr3Mo, 70Cr3NiMo, 5Cr5MoV ect.)
≤1000
≤2000
Tempering work rolls
Cr2 Cr3 Cr5 series
≤800
≤2000
Back-up rolls
Cr2 Cr3 Cr5 series,
42CrMo-60CrMo
≤1000
≤2000
Smoothing rolls
60CrMoV、H13、80CrMoV
≤750
≤2000



        Mechanical properties

Roll type
Tensile strength
(MPa)
Depth of hardness
 (mm)
Neck hardness
(HSD)
Barrel hardness
(HSD)
Cr2 series
≥800
12-18
40-50
work roll: 90-105
intermediate roll: 80-90
backup roll: 65-75
temper roll: 95-100
Cr3 series
 ≥900
20-28
40-50
Cr5 series
≥1000
30-40
40-50



        Applications

          Widely used in the production line metallurgical industry board strips, the longitudinal cutting tools, acid, zinc, tin, painted and winding, Nonferrous metal industry of annealing, pull thin and coating.
