Product Show

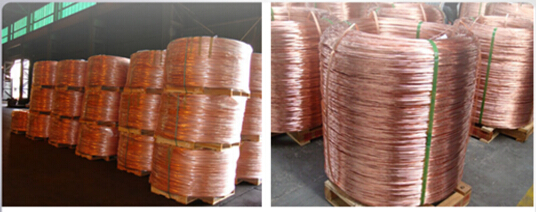

Product name : Copper wire
Item :C11000
Price :
Details :Bright Copper wire, Copper Winding Wire Standard:
JIS H3250-2006,ASTM B187/B187M-03,GB/T 4423-2007,
ASTM B150M-03, ASTM B98M-03, ASTM B151M-05
Material:
C1020BE,C1020BD,C10200,C10400,C10500,C10700,T2,C1100BD,C1100BE,
C11000,M1,C1201B,M1P,Cu-DLP,C1220B,CuZn15,H62,C2800B, CuZn40,C61400,
C62300,C64200,QSi3-1,C65500,C66100,C71500
Diameter: 0.12mm-8mm
Length: 5.8m,6m or as required
Surface Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Package: Standard export seaworthy or as customers' requirements
Application
Copper bar wire can be made as all kinds of deep drawing and bending stress components,such
as pin, rivets,washers,nuts,ducts,air gauge,screen mesh,radiator parts,etc.Has a good
mechanical performance,under the hot plasticity is good, the plastic fair,under the cold can
good machinability, fine welding and welding,corrosion resistance,is widely used an ordinary
copper.
Features

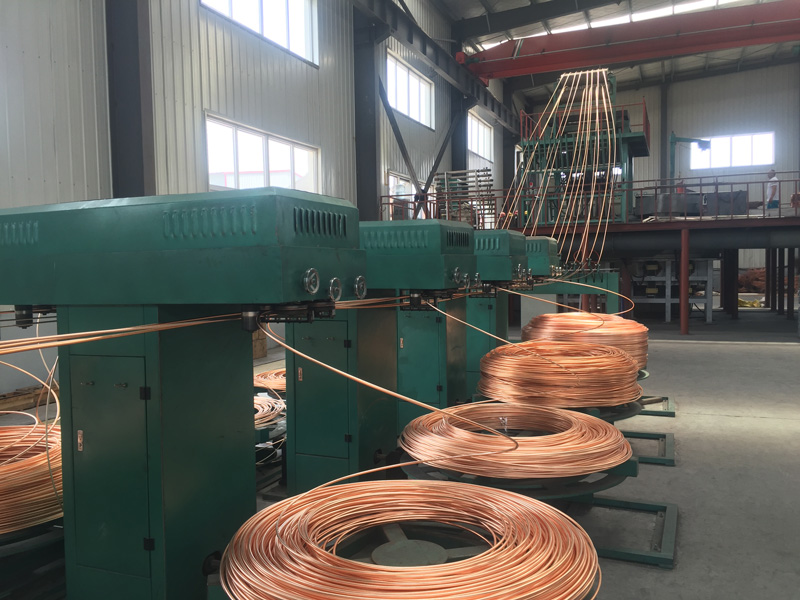

1. Unique manufacturing process: cold drawing process, no out of line,no warping, no cracking .
2. Good corrosion resistance,the using life are more than 30 years.
3. The surface is made of copper material, better electrical conductivity and much lower resistance than the conventional matertials.
4.It is suitable for different soil moisture, temperature, PH value and under the condition with the resistivity changing ground construction.
5. Safe and reliable connection
6. Convenient installation,improve the ground depth, special transmission party into the 35 meters underground, to meet the special occasions of low resistance requirements.
7. Lower construction cost.
|
